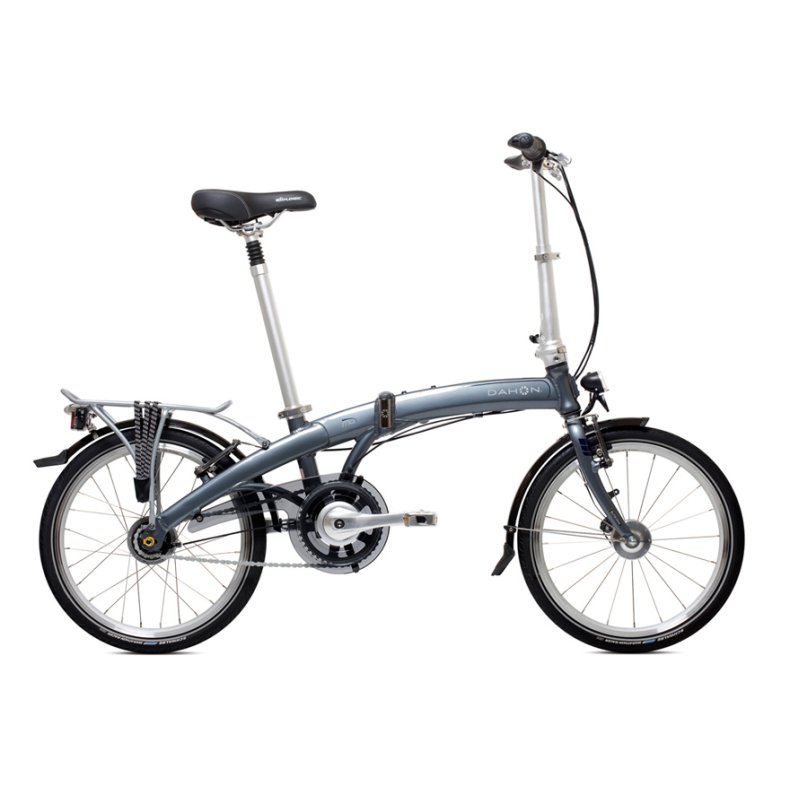

The M&956; XL is the ultimate city bike: it features plush suspension, self-generated lighting, luggage capacity, puncture resistant tires, and style to spare. The Shimano Nexus 8 Premium hub, delivers eight widely spaced gears, excellent efficiency, marvelously smooth shifting, and low maintenance. And because it folds, you’ll never need to leave your precious M&956; XL outside, in the care of bike thieves..
SPEEDS 8
FRAME SIZES 1
GEAR INCHES 24" - 75"
DISTANCE: SEATPOST TO HANDLEBAR Min: 625 mm (24.4") Max: 655 mm (25.5")
DISTANCE: SADDLE TO PEDAL Min: 685 mm (26.7") Max: 975 mm (38")
FOLDED SIZE 30 x 79 x 66 cm (11.7" x 30.8" x 25.7")
FOLDING TIME 15 sec
WEIGHT 14.3 kg (31.5 lb)
SUGGESTED RIDER HEIGHT 142 - 193 cm (4'8"- 6'4")
MAX RIDER WEIGHT 105 kg (230 lb)
FRAME PA Series, 7005 butted aluminum alloy, custom-drawn Sonus tubing, Lattice forged hinge, patented Fusion and V-Clamp technologies
FORK Dahon SlipStream™, Puro™ U7 aluminum, patented Fusion technology, double butted tubing
SUSPENSION n/a
HANDLEPOST Radius™ V Telescope™ adjustable, patented Fusion and V-Clamp technologies, forged aluminum, Covert™ QR technology
HANDLEBAR 6061-T6 aluminum, Flat bar
STEM n/a
HEADSET Dahon Fusion+, Zero stack, cartridge bearings
GRIPS/BAR TAPE Ergon, for one side twist
SADDLE BioLogic™ AirFlo™, Mojo Groove design
SEATPOST BioLogic™ suspension seatpost, 40 mm travel, forged clamp
SEAT CLAMP Dahon Turtleneck™ clamp
FRONT BRAKE Kinetix SpeedStop V-brakes, stainless link, anchor and pivot bolts
REAR BRAKE Kinetix SpeedStop V-brakes, stainless link, anchor and pivot bolts
BRAKE LEVERS BioLogic™ VB, integrated bell, ergonomic levers with Kraton insert
BRAKE CABLE & HOUSING Dahon LiveWire™, SIS housing, slick cable
FRONT HUB BioLogic™ Joule™ II dynamo
REAR HUB Dahon Special Edition Shimano Premium Nexus 8
SPOKES 18/8 stainless steel, brass nipples or Sapim Leader, stainless steel
NIPPLES Polyax nipples (EU Assembly)
RIMS Kinetix Comp, doublewall, CNC machined sidewalls, wear line indicator
TIRES Schwalbe Marathon Racer, 85 psi, Qualifier Compound casing, RaceGuard puncture protection, Reflex
SHIFTER(S) Shimano Nexus 8, Revo
FRONT DERAILLEUR n/a
REAR DERAILLEUR n/a
CRANKSET Kinetix Wing, cold-forged 6061 aluminum crank arms, hand-polished, alloy ring
CASSETTE/FREEWHEEL Shimano, 16T
BOTTOM BRACKET Cartridge, sealed bearings
CHAIN KMC Z610RB, RustBuster
PEDALS Folding, Big Mouth
CABLE & HOUSING n/a
CHAINGUARD Full chainguard
MUDGUARDS SKS Mini 20, stainless hardware
RACK ArcLite™, tubular aluminum, luggage strap
KICKSTAND Dahon Double stand
CLIP SYSTEM Magnetix™ system
LUGGAGE BRACKET Frame integrated - KlickFix/Basil compatible
FRONT LIGHT Spanninga MicroFF, HiLux LED, stand light
REAR LIGHT Spanninga Premium, LED
ACCESSORY Reflective pants clip
